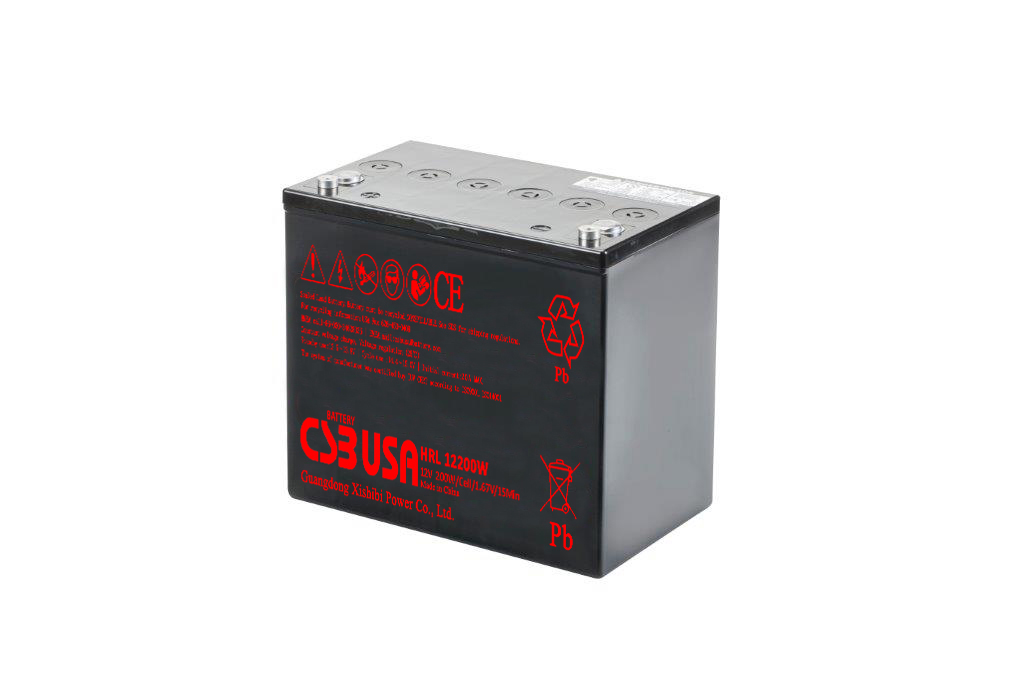

HRL12200W（12 V 200.0w/cell）
HRL 12200W is specially designed for high efficient discharge and long life.application. It\’s characteristics are small volume, light weight and high discharge efficiency. It can be used for more than 260 cycles at 100%
discharge in cycle service, up to 10 years in standby service.
|
安培数
|
200W @15 minute-rate to 1.67V per cell @25℃ (77°F)
|
|
重量(kg)
|
Approx. 17.3kg (38.13 lbs)
|
|
温度工作范围
|
Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
|
|
一般使用温度工作范围
|
25℃±3℃ (77°F±5°F)
|
|
浮充使用充电条件
|
13.5 to 13.8 VDC/unit Average at 25℃ (77°F)
|
|
均充使用充电条件
|
14.4 to 15.0 VDC/Unit Average at 25℃(77°F)
|
|
自放电
|
It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
|
|
端子
|
I2-Thread lead alloy recessed terminal to accept M6 bolt
|
|
电槽组材质
|
Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.
|
